Russian type 1Zh24B miniature pentode tube
(Also known as 1J24B)

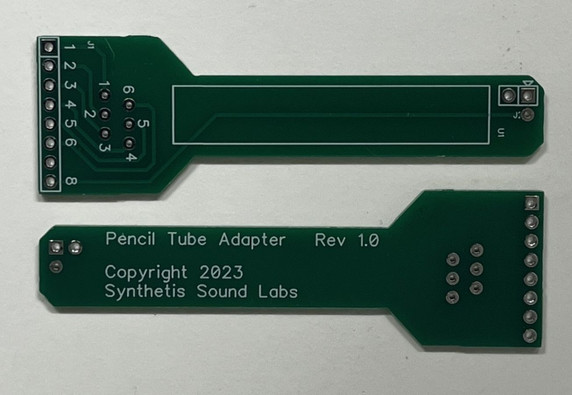

We offer a compatible PCB for mounting the 1Zh24B tube and simplifying the associated wiring. Design courtesy of our friend Doug Slocum at SSL

Here is an AMAZING resource for detailed information on these and other subminiature tubes: Joe Sousa's Ultimate Submini Tube Guide

• Type: pentode;
• Application: HF voltage amplification;
• Cathode type: oxide, direct heating;
• Envelope: glass, miniature;
• Mass, g: 4;
• Filament voltage, V: 1,2;
• Filament current, A: 0,011-0,015;
• Anode voltage, V: 60;
• Grid1 voltage, V: 0;
• Grid2 voltage, V: 45;
• Steepness, mA/V: 0,48;
• Reverse grid current, uA: 0,1;
• Microphnic noise, mV: 50;
• Socket type: flexible.
