Sale 40% Quick view Relay Bypass Module Kit MV-57 True bypass switching, controllable by other Pedalsync chips or 3.3V or 5V logic signal. Includes the PCB, jacks and all parts. $21.95 $13.17 Add to Wishlist Add to Cart

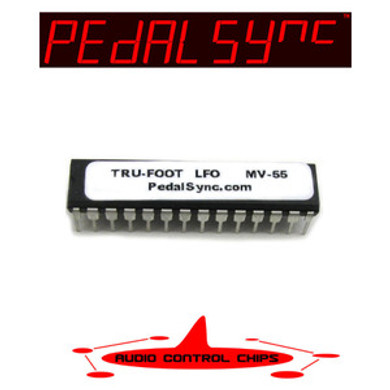

Quick view Tru-Foot™ LFO IC MV-55 Tap or MIDI control, also compatible with the PedalSync Four Presets chip, SKU 1939. Outputs four switch-selectable analog (16-bit DAC) waveforms, and stores and recalls Waveform, Clock/Pot Status,... $14.95 Add to Wishlist Add to Cart

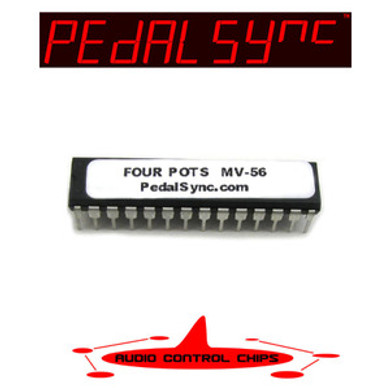

Quick view PedalSync Four Pots IC MV-56 The MV-56 reads the resistances of up to four pots, stores the values nd uses the data to control up to four Microchip MCP4151 digital pots. Stores up to 128 programs, MIDI-compatible... $12.50 Add to Wishlist Add to Cart
Quick view Relay Bypass IC MV-57 Accepts logic input from other MV-series chips or other 5-volt logic sources and implements noiseless, true-bypass analog switching without stomp switches. A suitable relay is the Panasonic TQ2-L-5V,... $5.95 Add to Wishlist Add to Cart
Quick view Four Presets IC MV-59 Compatible with MIDI devices and other MV-series chips. User can recall programs 1 to 4 by momentary switch input. Specifications, data sheet and typical applications can be found here. $5.95 Add to Wishlist Add to Cart

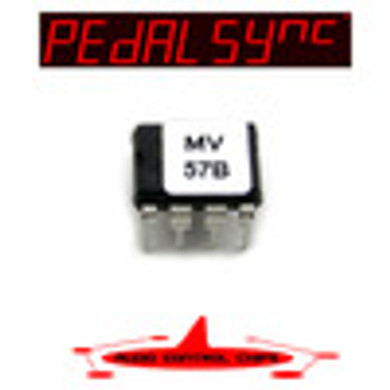

Sold out Quick view Relay Bypass IC MV-57B Accepts a momentary switch contact closure and implements noiseless, true-bypass analog switching. A suitable relay is the Panasonic TQ2-L-5V, SKU 0250A. Optional muting circuit uses a photo-relay,... $5.95 Add to Wishlist Out of stock

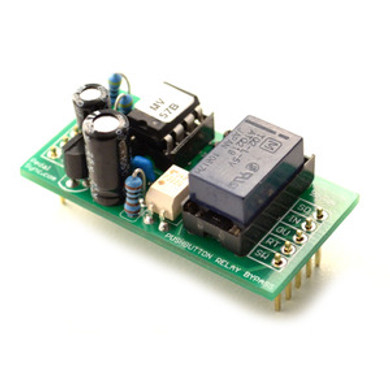

Sold out Quick view Relay Bypass Module Kit MV-57B Can fit in the battery drawer of a vintage pedal. Accepts a momentary switch contact closure and implements noiseless, true-bypass analog switching. Comes complete with the MV-57B IC and relay as... $19.95 Add to Wishlist Out of stock

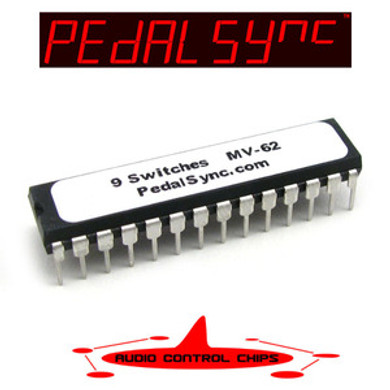

Quick view 9 Switches IC MV-62 Compatible with the MV-57 Relay Bypass IC. Specifications, data sheet and typical applications can be found here. $15.95 Add to Wishlist Add to Cart

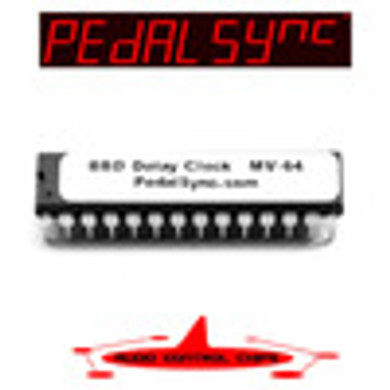

Sold out Quick view Analog BBD Delay Clock IC MV-64 Tap tempo, pot and MIDI control. Stores and recalls Delay Time, Delay Ratio, Clock/Pot Status, Bypass Status, Modulation Rate/Ratio, Offset, and Depth. Here is a link to the datasheet. $12.95 Add to Wishlist Out of stock

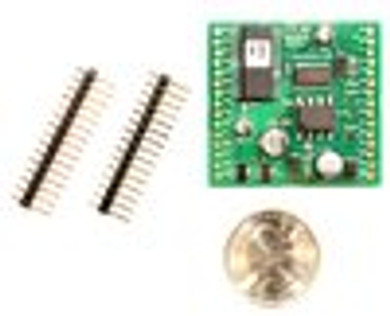

Sold out Quick view Analog BBD Delay Clock Module MV-64 The board provides regulated power for the chip from a 9-volt source, connections for tap tempo, pot or MIDI control of parameters, and connections for control of program storage. Here is a link to... $44.95 Add to Wishlist Out of stock

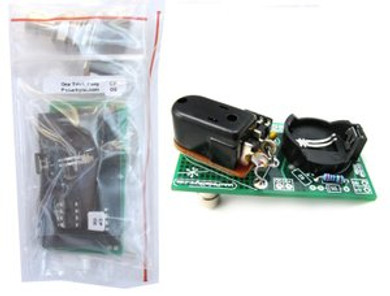

Quick view One-Trick Pony Modules Each module includes firmware that outputs specific MIDI info when the switch is pressed. The kit includes a coin cell battery and all parts except a MIDI jack. Build into a 1590A "Twinkie" box or... $22.95 Add to Wishlist Quick Add

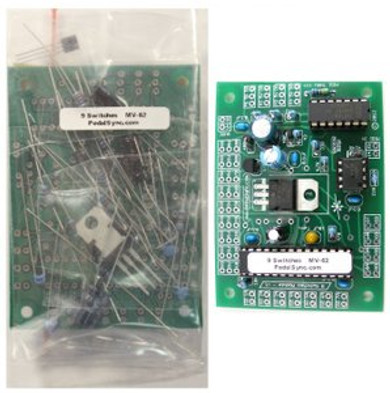

Quick view 9 Switch Control Module MV-62 Accepts up to nine momentary switch inputs and provides storage and recall of logic-level outputs for 128 programs. The module provides power and signal conditioning and logic level outputs... $29.95 Add to Wishlist Add to Cart
Quick view PedalSync Pulse Output IC MV-60 Control BOSS effects that accept a pulse input such as the PH-3 Phase Shifter, AW-3 Dynamic Wah, and the DD-7 Delay. Stores and recalls Clock/Tap Status, as well as Ratio, Offset, and Bypass Status... $12.50 Add to Wishlist Add to Cart
Sale 40% Quick view MIDI Pulse IC MV-61 Outputs Line 6 MIDI tempo data that is synchronized to an incoming MIDI Clock. Specifications, data sheet and typical applications can be found here. $12.50 $7.50 Add to Wishlist Add to Cart
Quick view Program Change and Bank Select IC MV-65 The MV-65 is the brain for an external controller that uses discrete switches for bank up/down and for each program. The chip sends MIDI Bank Select and Program Change messages in 16 banks of 8... $11.95 Add to Wishlist Add to Cart
Quick view MV-58 PedalSync Master Control Development Board Sends Program Change, Clock, and self-programming commands to other PedalSync devices. Storage for 128 programs. Includes the board with all of the surface-mount components installed and supporting... $54.95 Add to Wishlist Add to Cart
