4ms Listen Up

4ms Listen Up

The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. There are four 1/4" jacks arranged in Left/Right pairs. The Left jack of each pair can be used as a TRS stereo jack if the Right jack is unpatched. The Listen Up connects to one or two Listen modules with the included 3-pin cables.

The do-it-yourself kit includes all the parts necessary to build a Listen Up. The DIY Kit is very easy to build and suitable for first-time kit builders. Basic hand tools are required.

• Four 1/4" (6.35mm) jacks arranged in two stereo pairs.
• Each stereo pair can be connected to the same module or to separate modules.
• Each stereo pair (left/right) is bi-directional (input or output).
• Left In and Left Out jacks are TRS stereo if corresponding Right jack is not unpatched.
• Uses no power.
• Connects directly to host module using 3-pin cables.
• Two 3-pin cables included.
• 4HP

Electrical and Mechanical Specifications:

• Module size:
  • 4HP Eurorack format module
• Power consumption:
  • None

Included in the Passive Mult Kit:

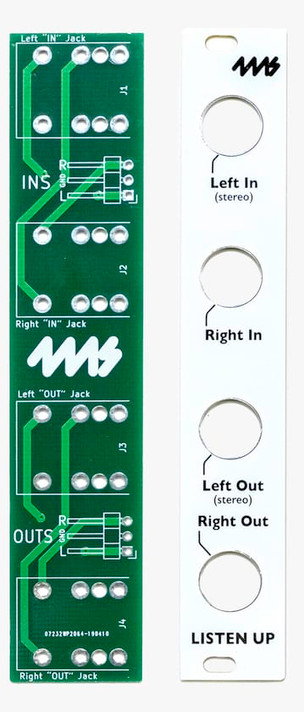

• 1x Listen Up Panel
• 1x Listen Up PCB
• 4x 1/4" Jacks
• 4x 1/4" Jack Hex Nuts
• 2x 1x3 Right Angle Headers
• 2x 3 Pin Cables
• 2x M3 Screws
