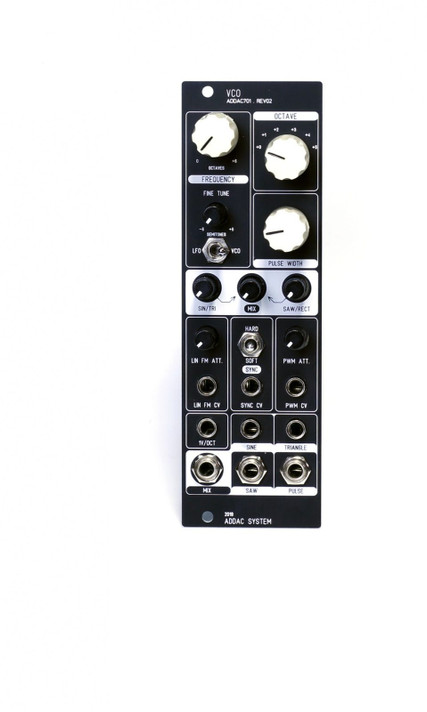

ADDAC701.rev2 VCO

ADDAC701.rev2 VCO

This is our new VCO, we discontinued our ADDAC701 VCO a few years back and since thenwe’ve been wanting to release a more stable version with better pitch tracking, increasing pitch reliability, and further minimizing the detuning issues of analog VCO’s.
 For this new revision we chose to use the modern version of the CEM3340 ic from CoolAudio and add the triagle to sine circuitry of our previous VCO. This new version is extremely stable over 7 octaves.

We also added a new Mix section which allows mixing of all waveforms controlled by 3 knobs SIN/TRI, MIX and SAW/RECT.

Features:
Frequency knob with 6 octave range
Fine Tune knob with 12 semitone range
Octave switch with 6 octave range
1v/octave cv input
Linear FM cv input with attenuator
LFO/VCO switch sets overall frequency range
Soft/Off/Hard Sync switch
Pulse Width control with initial knob and cv input with attenuator
SINE, TRIANGLE, SAW and PULSE outputs
Mix output controlled by 3 knobs SIN/TRI, MIX and SAW/RECT.
