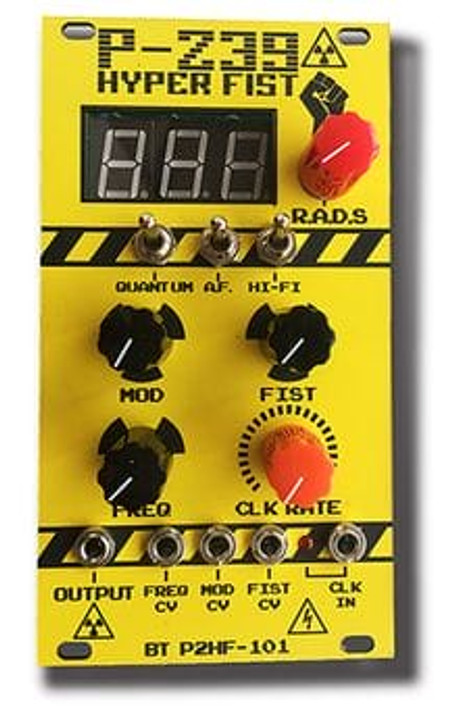

The Plutonium-239 Hyper Fist is a post apocalyptic wave table VCO with a resonant lo-fi feedback delay that can produce screechy spacey drones, wild glitches in addition to functioning as a standard wavetable VCO with pluse width modulation and waveshaping. The P-293 Hyper Fist has a clock input which can be clocked at audio rate to produce AM effects or slowly at note/beat rates to produce interesting percussive synchronization.
Specifications: 8bit Grain table sound module
31khz / 10.5khz internal sample rate PWM Audio @ 76.5khz FREQ/MOD1/MOD2: -5 .. +5v safe but effective range 0..5v Clock input: 0-5v only On board 5v regulator, only +12/-12v rails required Current Draw Approx 58ma on +12v rail 14HP Dual Layer Acrylic Panel @ 3mm total thickness
