Blacet Dual VC Frequency Divider FD3120

Blacet Research Dual Voltage Controlled Frequecy Divider Module

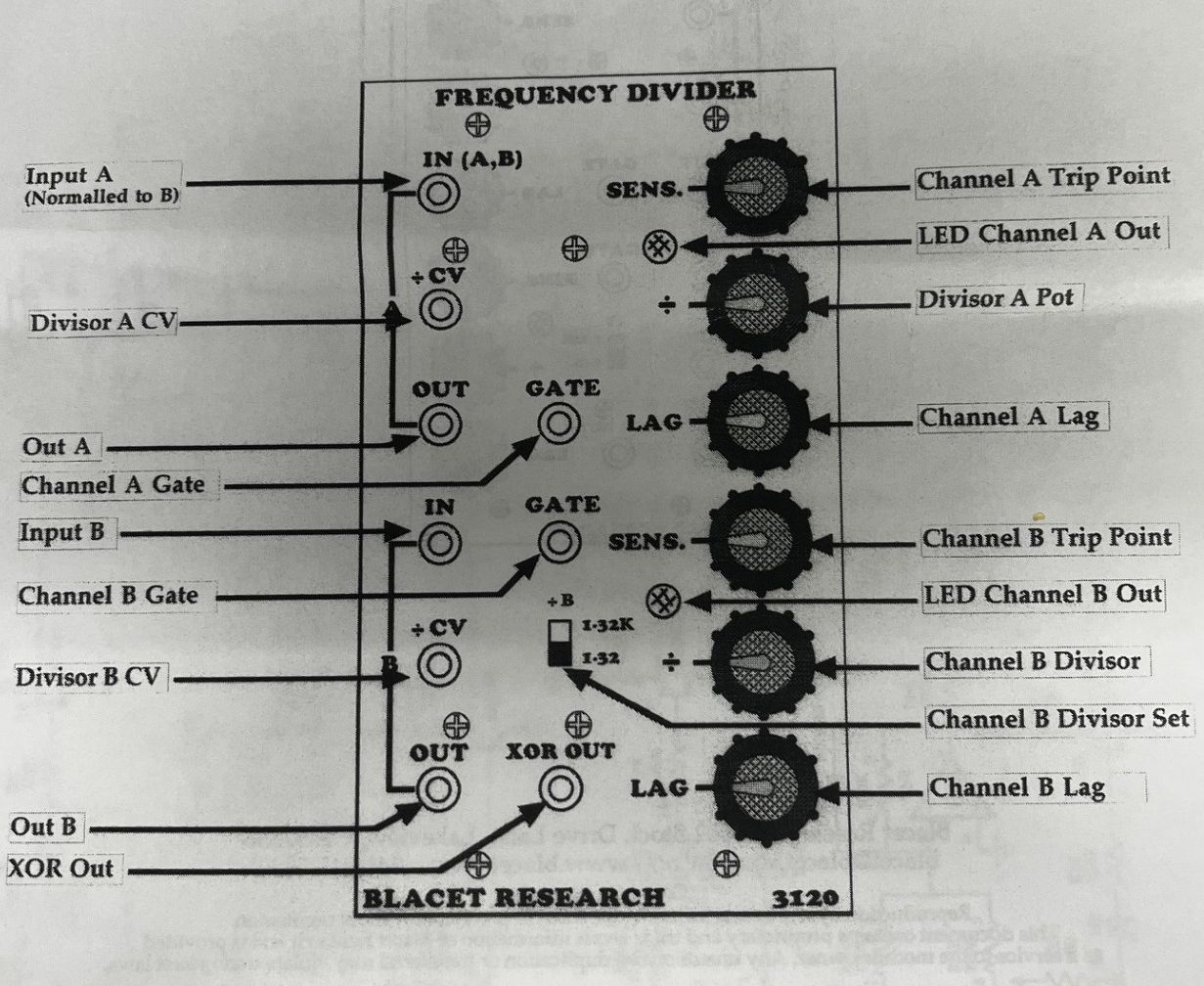

The FD3120 is a dual VC frequency divider allowing 16 divisors of 1, 1.5, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 16, 24 and 32 on each channel. The 'B' channel can be switched to provide divisors of 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 16384 and 32768. Divisors can be manually or voltage controlled.

Output waveforms are pulse or square.

The A Input is normalled to the B input if no plug is inserted in the B Input.

A 'Sensitivity' control on each section allows setting the trigger point on complex input waveforms.

Each channel has a normalled 'on' Gate/Reset Input. Both channels have lag controls to reduce the harmonic content of the output.

An additional XOR Output combines the two channels to give a ring modulation type sound.
