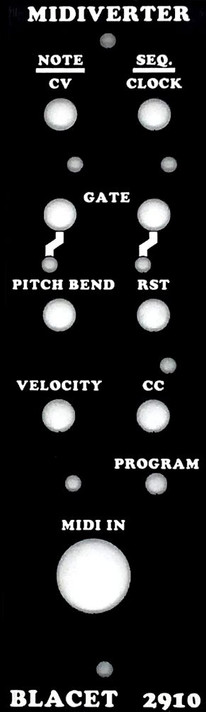

Blacet Midiverter MIDI2910

Blacet Midiverter 2910 is a microprocessor-controlled MIDI to note CV, gate and sequencer control converter for use with analog modular systems. The sequencer control functions are designed to interface with sequectial modules like the Binary Zone and the Hex Zone.

NOTE ouput is 5V 14-bit converted single channel 1V/Oct standard. NOTE GATE ouptput is designed to control an EG, ADSR, etc.

PITCH BEND output is +/-5V 14-bit with center zero, with 7 ranges selectable via a CC channel 119 message.

VELOCITY output is a 5V 14-bit variable output derived from keyboard velocity.

CC output can be programmed to follow any MIDI CC message such as the modulation wheel (CC 1), It is programmed by pushing the Program button and activating the desired controller.

SEQUENCER CLOCK output divides down the MIDI clock to interface with modules such as Binary Zone and Hex Zone.

SEQUENCER GATE output follows the MIDI start/stop and the SEQUENCER RESET output generates a reset signal from the MIDI input.

PROGAM BUTTON allows setting the MIDI input channel 1-16, the CC output, the low 'C' note, and serves as a PANIC (all notes off) button.
