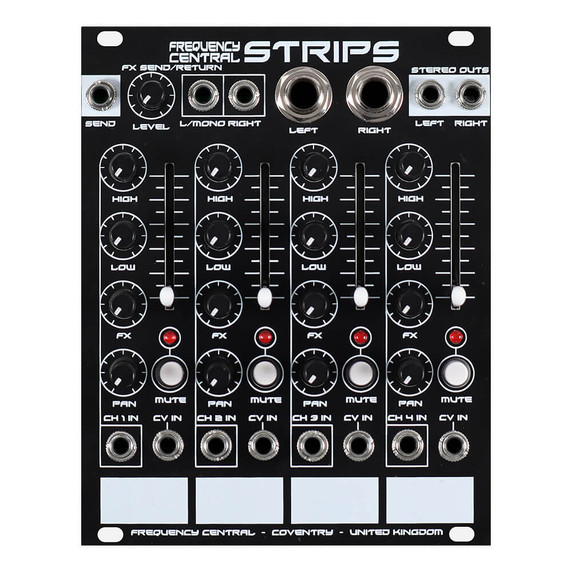

Expandable 4 channel VCA based stereo mixer with tone shaping and FX bus.
Features
4 x input channels, each featuring LEVEL, HIGH, LOW, FX send, PAN, MUTE and CV control of level.
FX send and stereo return + FX phase jumper
Left and Right Eurorack level inputs (2 x 3.5mm sockets)
Left and Right line level outputs (2 x 6.35mm sockets)
Scribble strips!
Strips is also expandable! You can add a second strips, connected to the first via a 16 pin to 16 pin cable. The cable powers the second Strips and gives you 8 channels to play with. The second Strips accesses the first Strips FX bus. When using in expanded configuration, the FX send/return and main outputs for the second Strips are not available. Here’s how!
FX phase jumper – because not all FX that you might use in the FX loop are in phase with respect to their input/output. The phase jumper allows you to compensate for this and avoid weird phase cancellations.
Chipset
For this item we offer a CHIPSET which contains the following:
