This is the first in our series of module kits that combine the best of Music From Outer Space, the MOTM DIY Analog Modular format and Bridechamber! A blast back to earlier days of synth DIY –

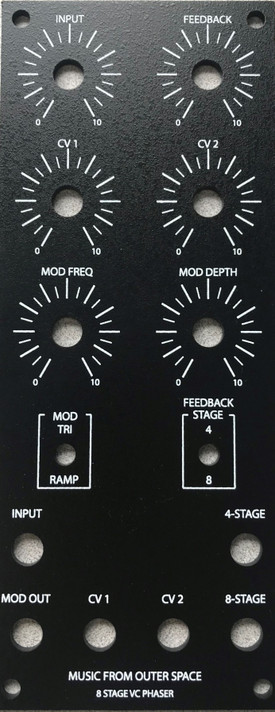

This full synthCube kit combines Ray Wilson’s 8-Stage Phase Shifter PCB with the Bridechamber-designed MOTM format panel.
The Panel+PCB bundle includes the panel, PCB and 2XMFOS Universal Mounting Brackets
The PCB mounts to the panel using the MFOS Universal Mounting Brackets. Some builders may choose to use a three-pot ‘stooge’ bracket for additional strength.
Features
Switchable 4 or 8 stage phase shifter.
Variable feedback ranges from mild swooshing to raucous mind bending.
Two external control voltage inputs.
Pseudo stereo output when 4 stage and 8 stage outputs are used.
Transconductance amp based phase shift cells.
On-Board LFO produces Triangle and Ramp waves.
Phase angle is modulated in a logarithmic fashion.
8 Stages of phase shift result in some sweet barber pole effect.
Quirks
With high feedback settings you get a bit of oscillation, depending on osc. rate.
With ramp wave setting you get some control voltage feedthrough (and the above).
Not a noise generator but not a piece of L.A. studio equipment.
Makes a pop when switching between 4 and 8 stages.
All of the original descriptions, schematic, build notes etc can be found on the original Music From Outer Space website http://musicfromouterspace.com/
