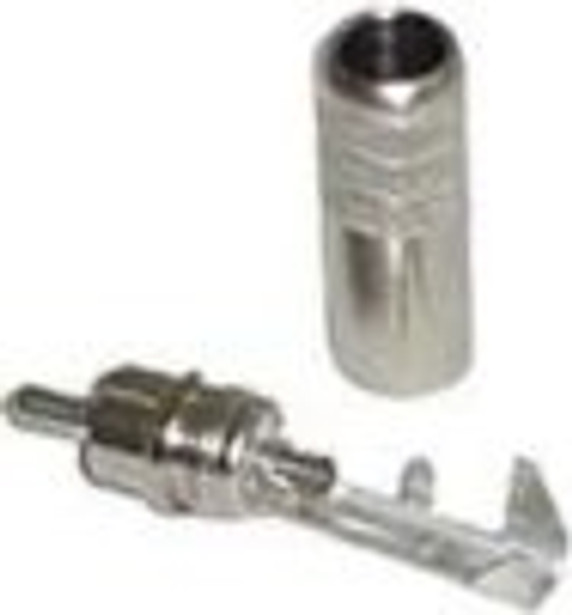

RCA Plug, Switchcraft #3502A

From the manufacturer:

2 Conductor shielded RCA straight plug, solid pin, cable up to 0.290" (7.366mm) diameter, solder cup on center. Long handle & cable clamp, Nickel Handle, Nickel Plug.

Configuration

• Number of Conductors: 2
• Mounting Type: Cord
• Termination Style: Solder Cup
• Contact Plating: Nickel
• Color: Nickel
• Sealed: Not Sealed
• Handle Material: Brass
• Packaging Type: Bulk
• Standard Connector Type: RCA
• Jack-Plug Type: Plug

Electrical

• Contact Resistance: 0.02 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 1000 MOhms
• Voltage Rating: 250 Volts
• Current Rating: 6 Amps

Environmental

• Temperature Range: -40C to +85C
• Minimum Temperature: -40 C
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Dimensional

• Cable Opening: 0.29 in

Material

• Contact Material: Copper Alloy
• Contact Plating Type: Nickel
• Insert Material Type: Rigid Plastic Insulating Spacers
