Synthux Academy
Synthux Simple Designer DIY Kit
Product Code:
KITSXDNREURO01
$269.00

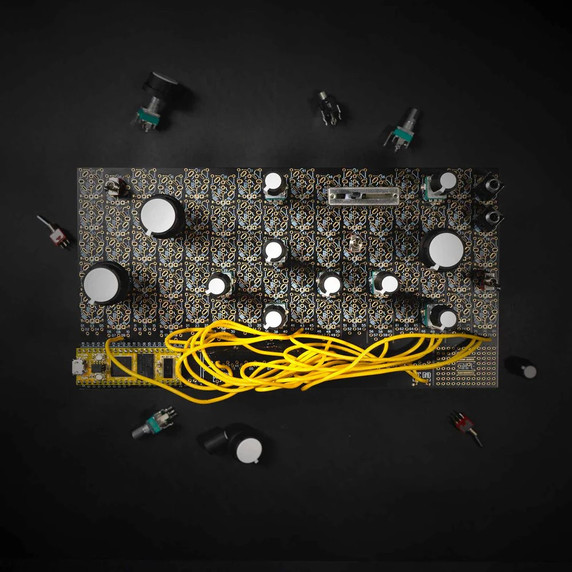

Synthux Simple Designer
Simple Designer is a rapid prototyping instrument for synth designers, makers and musicians. It incorporates 80 slots for potentiometers, switches and jacks. You can also add fades, LED's and with a little creativity build a full-blown synthesizer running the Daisy Seed microcontroller.
BUILD TUTORIAL
Follow our build tutorial, learn to solder like a pro, and unleash your kit's full potential!
VIDEO COURSE INCLUDED
Our video course - Introduction to Synth Programming is included in with the full kit version.
PCB BOARDS
1 Designer board
1 Fix board
1 Fix board
MICROCONTROLLER
1 Daisy Seed
KNOBS
6 Rogan 1P Knobs
3 Rogan 2P Knobs
3 Rogan 5PS Knobs
3 Rogan 2P Knobs
3 Rogan 5PS Knobs
COMPONENTS
4 Mono Jacks
12 10K pots
12 10K pots
2 10K TRIMMER
1 10K SLIDE POT FADER
4 Female headers (ultra-low profile)
4 Female headers (ultra-low profile)
2 Male headers (ultra-low profile)
4 Switchs (on-off-on)
4 Switchs (on-on)
25 10cm wires (tinned edges)
4 Switchs (on-off-on)
4 Switchs (on-on)
25 10cm wires (tinned edges)
Designer galore!
Simple Designer is a rapid prototyping instrument for synth designers, makers and musicians. It incorporates 80 slots for potentiometers, switches and jacks. You can also add fades, LED's and with a little creativity build a full-blown synthesizer running the Daisy Seed microcontroller.
Inspiring freedome
If you can imagine it, you can build it! Simple Designer is a full-blown synthesizer. Build a stand-alone instrument, an effects box or a Eurorack module. Design your ideal interface and program your sound the way you envision it!
Interface playground
From switches and jack sockets to knobs in different sizes and even faders, Simple Designer makes for a perfect sketch board for instrument interface design.
Pristine sound
Running the Daisy Seed microcontroller, Simple Touch can be anything from a stereo looper to an analog sounding multi-voice subtractive synthesizer or drum machine. Daisy is 96kHz / 24-bit audio hardware, ARM Cortex-M7 MCU, running at 480MHz and has 64MB of SDRAM for up to 10 minute audio buffers.
