The Automator is a hands-on, 2-channel tempo-synced CV and gate recorder for Eurorack, built around a large, expressive slider and intuitive controls. It captures your movements in real time, turning gestures into looping modulation patterns with precise timing. Requiring an external clock (4ppqn), Automator continuously records while idle and begins playback the moment you hit record, looping up to 4 bars. You can change loop length and tempo post-recording, and each channel—selectable via a button—is color-coded (red for channel 1, green for channel 2). CV is recorded via the slider, while gates are captured using a dedicated button, with high resolution and flexible timing. Whether you're drawing dynamic modulations or tight rhythmic triggers, Automator gives you a powerful and performative way to animate your patches.

Features:
• Dual-channel CV and Gate recorder with tempo sync
• Dedicated Gate button for rhythmic trigger input
• Supports loop lengths from ¼ bar to 4 bars
• Channel selection button with color indication (Red = Ch1, Green = Ch2)
• Real-time recording resolution (CV every 2ms, gates down to 50ms)
• High gate density (up to 125 triggers per bar)
• Recordings timestamped for accurate playback timing
• Decoupled gate and CV recording for flexible pattern creation
• Clock input (4 ppqn) with tempo scaling from 30 BPM upwards
• Playback length can be changed after recording without losing data

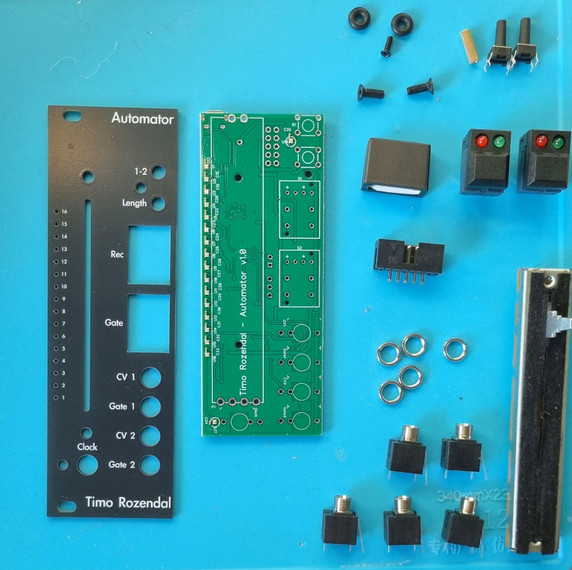

DIY-Kit: The kit includes all parts to build the module. All SMD parts are pre-soldered, only through-hole parts to solder.
