Quick view Xvive Vactrols / Optocouplers / Photocouplers / Opto-Isolators from Xvive Excilitas Perkin-Elmer Silonex Vactec Coolaudio Vactrols / Optocouplers / Photocouplers / Opto-Isolators We are using these terms interchangably – although they are not technically correct, it’s common use. $4.75 - $22.99 Add to Wishlist Quick Add
Quick view Optical Isolator Vactrol LED Photodiode These are comparable to Vactrol VTL5C2 but smaller in size. Use them in compressor or envelope filter pedals!Off resistance is 150k up to Megaohms.On resistance is under 400 ohms.LED requires 10-16mA.Dot on case is the negative LED lead. $5.00 Add to Wishlist Add to Cart
Sold out Quick view Photocoupler Coolaudio VTL5C3 Popular for trems and vibratos $9.99 Add to Wishlist Out of stock
Quick view Photocoupler XVive VTL5C3 Work-alike Good clone of the Excelitas part! A little faster response and decay, light resistance 20K @ 1 ma. $6.99 Add to Wishlist Add to Cart
Quick view Photocoupler NSL-32-034 Repair parts for the E-H Micro Q-Tron. Please look at the ones you are replacing and click the dropdown to choose range A, B, or C. $6.75 Add to Wishlist Quick Add
Quick view Photocell Clairex CL604 30K light-resistance, dark resistance over 10 Meg. Combine with a red or green high-brightness LED for use in the Tremulus Lune or Tremulous Bear. Fast-switching, so would also be good for a repeat percussion device. Individually packaged... $9.99 Add to Wishlist Add to Cart
Sold out Quick view Photocoupler Vactec VTL5C2 for some compressors, tremolos $12.99 Add to Wishlist Out of stock
Sold out Quick view Photocoupler Vactec VTL5C3 Popular for trems and vibratos $12.99 Add to Wishlist Out of stock
Sold out Quick view Photocoupler Vactec VTL5C9 Used in some trems, reverbs and channel switching. Will work in place of the P1501 in the Ibanez AF9 Auto-Wah. Bag for reference; you are purchasing 1 photocoupler. $10.25 Add to Wishlist Out of stock
Quick view Photocoupler, Dual - XVive VTL5C3/2 Used in the MXR 100 Phaser. This is the XVive reissue $11.99 Add to Wishlist Add to Cart

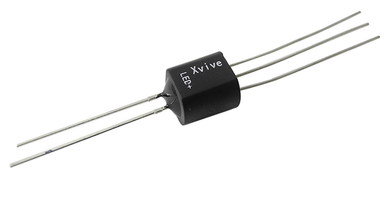

Quick view Photocoupler, Dual - XVive VTL5C4/2 Used in the DOD595 Phaser. This is the XVive reissue. $11.99 Add to Wishlist Add to Cart
Sold out Quick view Photocell 100K-200K Light Resistance Formerly Mouser #338-54C79 $2.75 Add to Wishlist Out of stock
Quick view Photocoupler Silonex NSL-32 Silonex (Advanced Photonix) NSL-32 $4.75 Add to Wishlist Add to Cart
Sold out Quick view Clairex CLM6000 - Tested These have been tested to the factory spec of under 500 ohms Ron. The yield is small, so they are more expensive. Find slightly out of spec here: https://synthcube.com/photocoupler-clairex-clm6000-s-o-s/ Find reasonably out of spec... $7.95 Add to Wishlist Out of stock
Quick view Photocoupler Clairex CLM6000 S.O.S. Slightly Out-of-Spec, tested for Ron under 1K ohm.These will work in circuits that specify the CLM6000. $5.99 Add to Wishlist Add to Cart
Quick view Photocoupler Clairex CLM6000 O.S. An inexpensive way to get some high-quality assorted photocouplers $2.50 Add to Wishlist Add to Cart
Sold out Quick view Photocell Clairex CL9P4 for the Easy Vibe and other modulation effects. Fast response, Dark Resistance 20 Meg, Light Resistance 20K $2.50 Add to Wishlist Out of stock
Sold out Quick view Photocoupler Hamamatsu P873-13 for Mutron III/Neutron repairs and clones $7.25 Add to Wishlist Out of stock
Quick view Photocoupler H11F1 Photo-FET, 7.5KV, On-resistance max 200 ohms, +/- 30 volts operation. 6-pin DIP $2.25 Add to Wishlist Add to Cart
Quick view Photocells CdS 5mm Diameter Type Light Resistance Min-Max Min. Dark Resistance 8002 8 - 24K 500K 8005 40 - 120K 1 Meg 8006 80 - 240K 5 Meg 8102 9 - 20K 300K 8104 27 - 60K 2 Meg 8105 50 - 94K 2.5 Meg 9200 10 - 50K 5 Meg 9203 5 - 20K 20 Meg Rise times are 55-70... $0.89 Add to Wishlist Quick Add
Quick view Photocoupler H11F2 Photo-FET, On-resistance max 330 ohms, +/- 30 volts operation. 6-pin DIP $1.75 Add to Wishlist Add to Cart
Quick view Photocoupler H11F3 Photo-FET, On-resistance max 470 ohms, +/- 15 volts operation. 6-pin DIP $1.99 Add to Wishlist Add to Cart
Quick view Photocoupler Vactec VTL5C4 VTL5C4 Vactec Vactrol Perkins Elmer $12.99 Add to Wishlist Add to Cart
Quick view Photocoupler Silonex NSL-32SR3 OEM replacement for the E-H White Finger compressor. $4.75 Add to Wishlist Add to Cart
