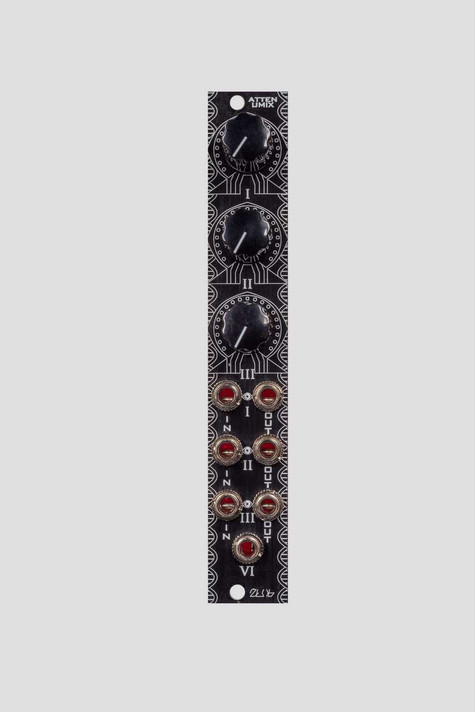

Zlob Attenumixer

The Attenumixer is a three channel passive attenuator with a sum out. Each channel is normalled to the sum(VI) so it can be used as a 2 channel mixer and 1 channel attenuator, or a 3 channel mixer, or as 3 separate attenuators. Normalization to the sum is broken by inserting a jack into the outs of channels I-III. The Attenumixer works well with both cv and audio, although the potentiometers have a linear response. Since the module is passive there will be signal loss at the sum out.

• Width: 4hp
• Panel Material: Aluminum PCB
• Current Consumption: 0mA
• Depth:
• Ships with M3 black nylon screws
• Build Difficulty: Beginner
• Expandable: no
