Zlob Dual VCA

zlob dual vca

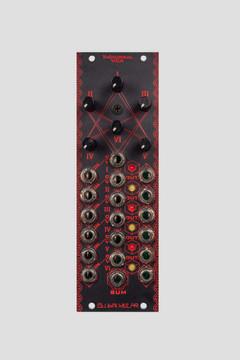

The Dual VCA is a 2 channel DC coupled OTA(LM13700) linear VCA based on the same fabled design of the VnIcursal VCA. The 2 VCAs are summed together so it can be used as a voltage controlled mixer or all 3 outs can be used separately and simultaneously. 5 volts into the CV in will provide unity gain, anything above 5 volts can clip the input.

• Width: 2hp
• Panel Material: Aluminum PCB
• Reverse Power Protected
• Current Consumption: +12v: 15mA , -12v: -15mA
• Depth: 50 mm
• Ships with M3 black nylon screws
• Build Difficulty: Intermediate
• Expandable: no
