Blacet Research Delay/Attack/Decay/LFO DAD2970

The Blacet DAD2970 is an event generator with Delay, Attack, and Decay segments. The DAD can also be looped yeilding an LFO.

Logic timiing is handled by a small microcontroller to minimize component count. The actual analog output signal is generated using a transconductance amplifier and analog switches to charge and discharge a capacitor.

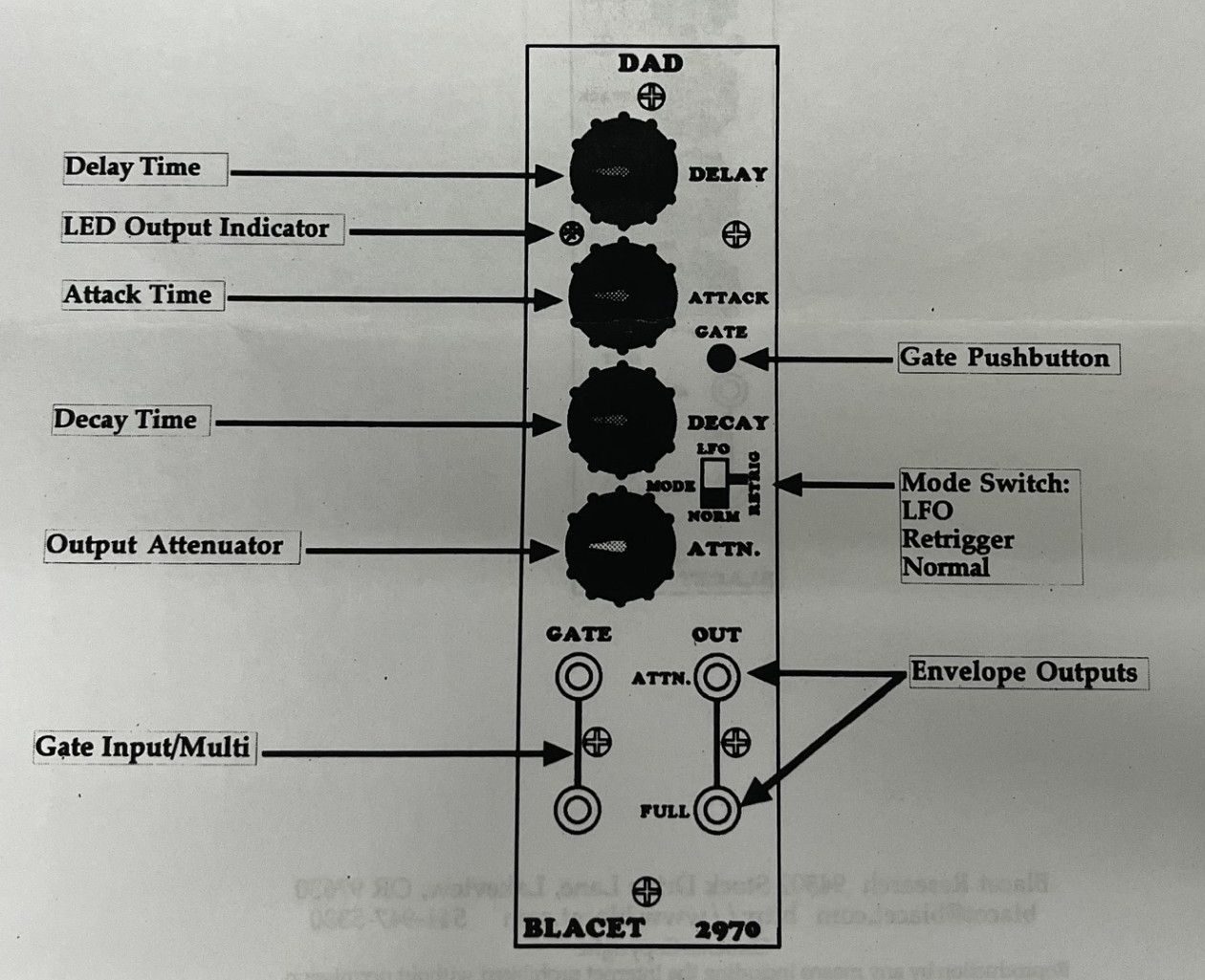

The two Gate inputs are connected together 'multi' fasion so that gate bsignal can also be routed to another module.

Two enelope outputs are available, one with an attenuator and one full output.
