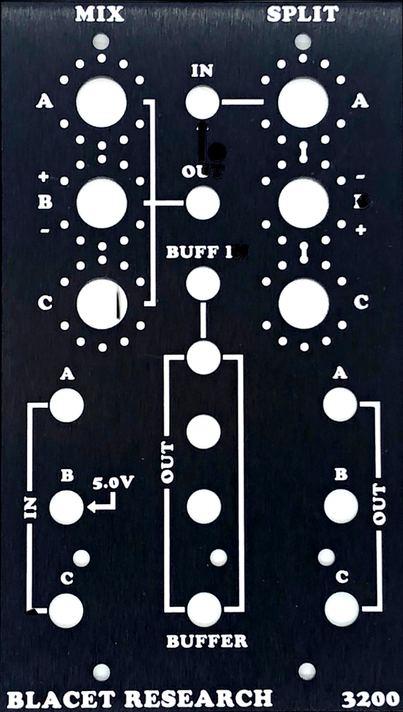

Blacet Research Splitter Buffer Mixer SBM3200

Blacet Research Splitter Buffer Mixer SMB3200

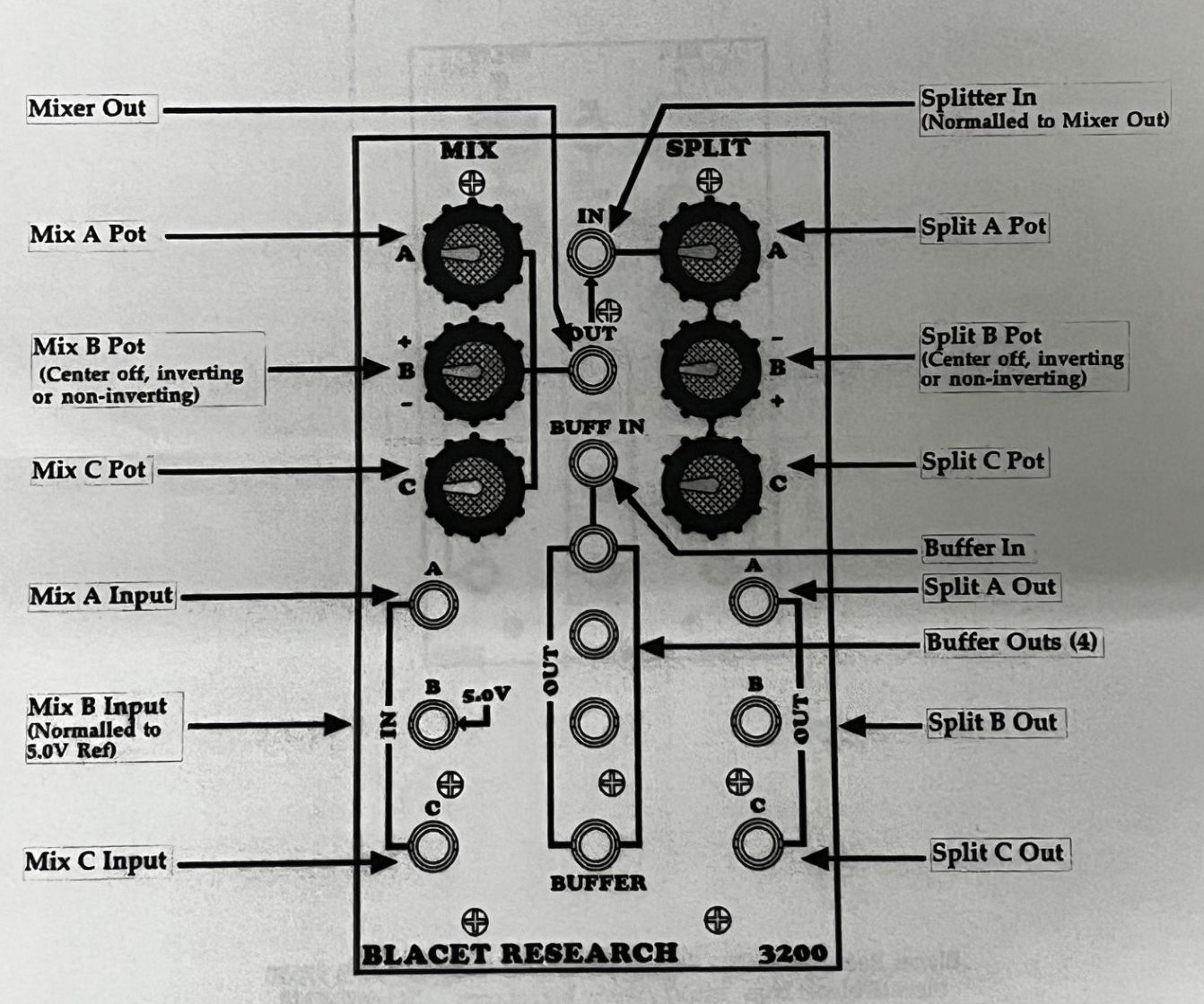

The SBM3200 combines three channel Mixing and three channel Splitting in one module. Also included is a four output active ultra-precisions Buffer especially useful for driving multiple VCOs.

Both the Mixer and Splitter have a 'Center OFF' phase shifting control on the B Channel allowing waveforms and voltages to be inverted or not. The B Channel of the Mixer has a normalled 5.0V reference, which is available when nothing is plugged into the B jack;. This allows a variable voltage from -5 to +5 volts to be added to the mix.

The output of the Mixer is normalled to the In of the Splitter when nothing is plugged into the Splitter In.

All inputs accept CVs or audio voltages and these pass through the modulae uninverted except when the B pots are in the 'minus' half of their rotation
